Unraid

Simplicity. Flexibility. Scalability. Modularity. Unraid empowers you to build the system you’ve always wanted using your preferred hardware, software, and operating systems.

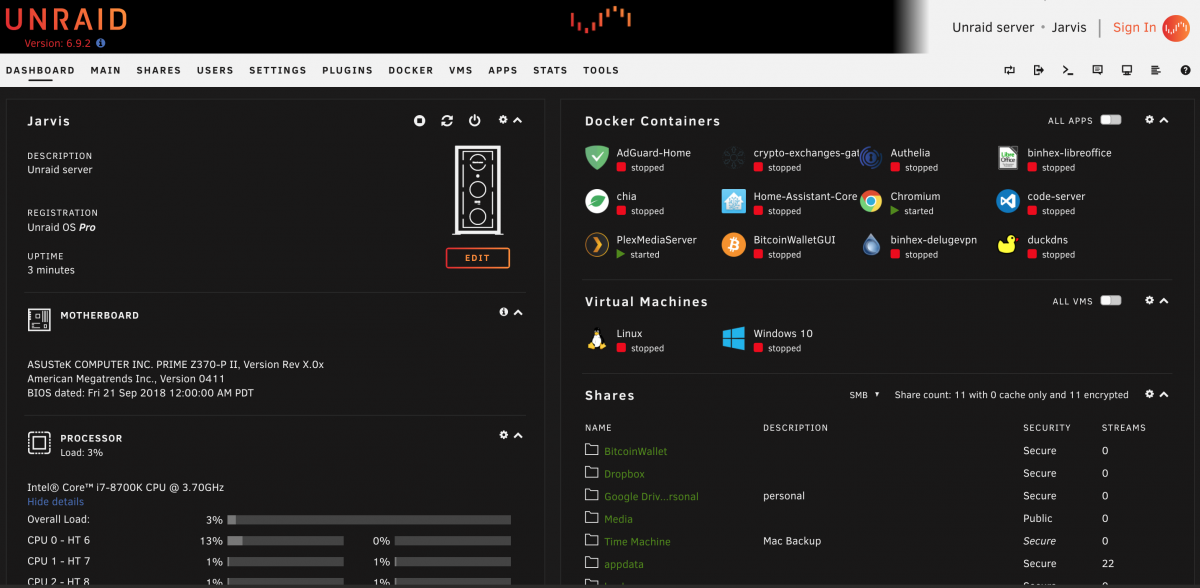

Unraid Screenshot

Hardware Requirements

An Unraid Server runs entirely from RAM, minimizing writes to the Flash device. However, it is also used to store vital system configuration data and must remain installed in your server during operation.

Device Requirements

  • 1 Must contain a unique GUID (Globally Unique Identifier)
  • 2 Minimum 1GB in size, maximum 32GB in size

If you have any questions about a USB drive, please ask our helpful community.
Get the details on hardware compatibility with Unraid.

Additional Requirements

The minimum hardware requirements to install Unraid OS 6 for data storage usage are:

  1. A 64-bit capable processor, 1.0 GHz or better
  2. At least 2GB of RAM
  3. Linux hardware driver support for storage, Ethernet, and USB controllers
  4. Two hard disk drives to ensure data protection with a parity disk

Additional requirements apply when adding applications or virtual machines.

To run a wide gamut of applications your system should consist of at least a quad-core CPU (2.4 GHz or faster) and 4-8GB of RAM. As you load more applications you load, you’ll need to add additional resources.

To run VMs, you must have hardware-assisted virtualization (HVM) support on your processor/motherboard (Intel VT-x / AMD-V). To assign host-based PCI devices, like graphics and sound, to your VMs, your CPU and motherboard must also support IOMMU (Intel VT-d / AMD-Vi).

Each of the three types of VMs you can create using Unraid OS 6, have slightly different requirements for virtualization support.

VM TypeHVMIOMMU
Virtual ServersRequiredNot Required
Virtual DesktopsRequiredNot Required
Hybrid VMsRequiredRequired

For more information, see our VM documentation.
