The Ultimate Energy-Efficient Unraid Server Build

In today’s ever-expensive world, building an energy-efficient server is becoming increasingly important for home lab enthusiasts. The goal of this build was to create a powerful 90TB server that idles at just 20-25 watts, proving that substantial storage capacity doesn’t have to come with massive power consumption.

The Hardware: A Low-Power, High-Capacity Setup

At the core of this build is an N100-based motherboard, featuring six SATA ports and two NVMe slots. Priced at around $150-180, it provides excellent value for those looking to build energy-conscious storage solutions.To maximize storage connectivity, an NVMe to SATA adapter was used along with 32 GB of DDR5 RAM.

➡️ N100 Motherboard: Amazon | AliExpress

➡️ NVMe to SATA Adapter: Amazon | AliExpress

➡️ Mini-SAS to SATA Reverse Breakout Cable: Amazon

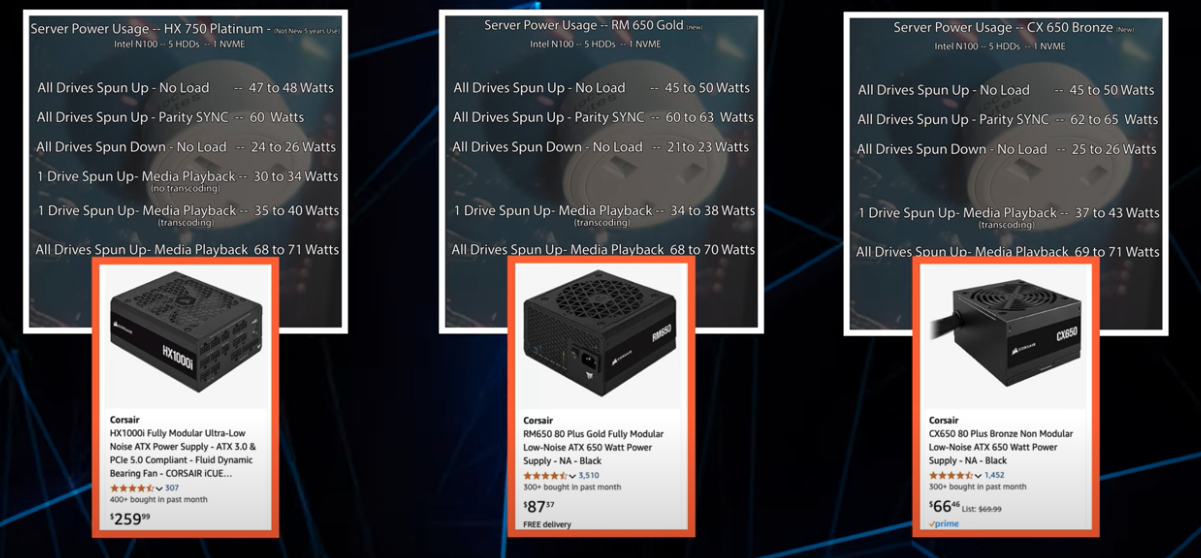

Surprising PSU Efficiency Findings

One of the unexpected discoveries during testing was the efficiency of different power supply unit (PSU) ratings. Conventional wisdom suggests that Platinum-rated PSUs are the most efficient, but real-world testing revealed otherwise for this build. The Corsair RM650 Gold PSU consistently outperformed both new and older Platinum-rated models at low power draws. With all drives spun down, the server idled at just 21-23 watts, demonstrating that a high-efficiency Gold-rated PSU can be a better choice for low-power servers over more expensive Platinum-rated ones.

➡️ Recommended PSU: CORSAIR RM650 Gold Fully Modular: Amazon

➡️ 2nd Best PSU: CORSAIR CX650 Bronze Non-Modular: Amazon

HDD vs. SSD Efficiency Showdown

A direct comparison between mechanical hard drives and SSDs provided further insights into efficiency. SSDs consumed slightly less total system power (17-19W vs. 22W with spun-down HDDs), but HDDs gained an edge by fully powering down when inactive and allowing for much more storage capacity than SSDs.  This means that for workloads with intermittent access, mechanical drives may actually be more power-efficient due to their ability to fully power down when inactive on top of offering more storage capacity.

Real-World Power Usage & Workload Testing

To understand real-world power demands, several workloads were tested:

• Idle state (drives spun down): 20-25 watts
• All HDDs spun up but idle: ~47 watts
• Parity sync (high disk usage): 60-63 watts
• All Drives Up with transcoding + parity Sync: ~70 watts

Even under peak workloads, this 90TB Unraid server remained remarkably power-efficient compared to traditional setups that often consume hundreds of watts.

➡️ Power Monitoring Plug with Tasmota/ESPHome: UK/EU | Amazon Alternative

➡️ Crucial RAM 32GB DDR5: Amazon

Annual Power Cost Breakdown

A cost analysis based on 24/7 operation showed that this server costs approximately:

• $29 per year in the US (at $0.15 per kWh)
• £48 ($60) per year in the UK (at £0.25 per kWh)

Final Thoughts: A Cost-Effective, Low-Power Storage Solution

This energy-efficient 90TB Unraid server proves that it’s possible to achieve massive storage capacity without excessive power consumption. By carefully selecting efficient hardware, optimizing PSU choices, managing drive spin-down settings, and leveraging Unraid’s power-saving features, users can drastically reduce their energy costs while maintaining high performance.

For home lab builders, media enthusiasts, and businesses looking for a sustainable storage solution, this setup offers a perfect balance of power, efficiency, and affordability.
