Ultimate Unraid Dashboard Version 1.6 is Now Available

Version 1.6 of the Ultimate Unraid Dashboard (UUD) is the largest release yet and leverages the power of the UNRAID API to bring you Array, VM, and Docker Monitoring!

This new version also adds a dedicated SSD (Cache or otherwise) monitoring section complete with Terabytes Written (TBW) monitoring to show SSD % of drive life used.

There are a ton of other features, enhancements, bug fixes, improvements and continued refinement of the UI and color scheme.

In total, UUD Version 1.6 adds 25 new Panels across 7 sections.

If you are hearing about the Ultimate Unraid Dashboard (UUD) for the first time, this is falconexe's and Gilbn's fantastic work at developing the Ultimate Grafana/Telegraf/InfluxDB/Plex/Tautulli/Varken dashboard for Unraid!

To read more on this project's original inception, see here for the full story.

What's New?

New UNRAID API Related Panels

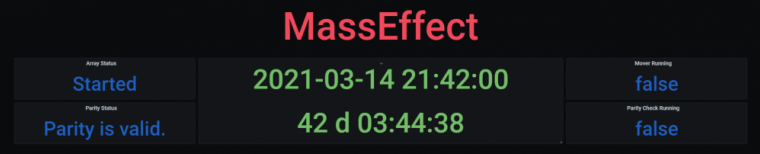

• Dynamic Header
• Host Name
• Array Status
• Parity Status
• Mover Running (True/False)
• Parity Check Running (True/False)

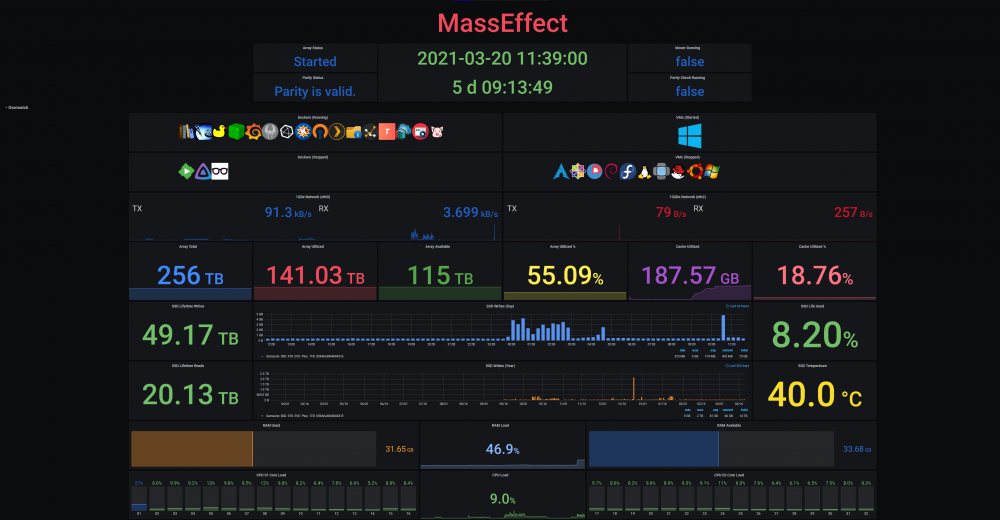

Overwatch

Docker Monitoring with Real Time Dynamic Images/Statuses

• Dockers (Running)
• Dockers (Stopped)

VM Monitoring with Real Time Dynamic Images/Statuses

• VMs (Started)
• VMs (Stopped)

Docker

• Dockers (All)
• Docker Details

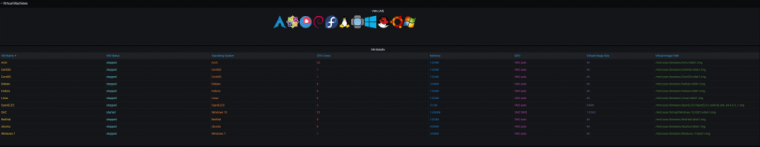

Virtual Machines

• VMs (All)
• VM Details

Server Hardware

• Shows More Detail Regarding Specific Server Hardware Specifications

Array Growth

• Array Growth (Lifetime)
• Shows Array Growth Over Rolling Last 10 Years (1 Data Point Per Day)

SSD (Cache) Drive Health

• SSD Writes (Day)
  • Shows SSD Writes For Rolling Last 24 Hours at 15 Minute Intervals
    • Controlled By New SSD Drive Variable
• SSD Writes (Year)
  • Shows SSD Writes For Rolling Last Year at 1 Day Intervals
    • Controlled By New SSD Drive Variable
• SSD Lifetime Writes
  • Measures SSD Lifetime Writes
    • Math Based on Manufacturer Max TB Written (TBW) Specification
    • Color Based on Thresholds (Derived From Manufacturer TBW)
• SSD Lifetime Reads
  • Measures SSD Lifetime Writes
    • Math Based on Manufacturer Max TB Written (TBW) Specification
    • Color Based on Thresholds (Derived From Manufacturer TBW)
• SSD Life Used
  • Calculates Used Drive Life Based on Lifetime Rights Divided by Manufacturer Max TBW
    • Math Based on Manufacture Max TB Written (TBW) Specification
    • Color Based on Thresholds (% of Manufacturer TBW)
• SSD Drive Temperature (Dynamic Colors Based Temp Thresholds)

Plex Library Statistics

• Combined Growth Chart Across All Libraries
  • The old way was just ugly and too performance intensive
  • This is a nice one stop shop!
• Completely Overhauled with New Panels with Media Type Breakdowns Across Sub Libraries

Install Help

For Install Help, this guide is a good place to start.

For help with:

Telegraf Plugins

• https://github.com/influxdata/telegraf/tree/release-1.15/plugins/inputs

REGEX:

• Cheat Sheet: https://www.keycdn.com/support/regex-cheatsheet
• Online REGEX Tool-Practice-Lab: https://regexr.com/
• Another Great REGEX Tool: https://www.regextester.com/

Database Logic / Boolean Operators (AND, OR, NOT, EQUAL, NOT EQUAL, etc.)

• https://libguides.mit.edu/c.php?g=175963&p=1158594
• https://www.w3resource.com/sql/boolean-operator/sql-boolean-operators.php

Also see the UUD Walkthrough Video Playlist
